AUTOMATIC WATER SOFTENER - 1665

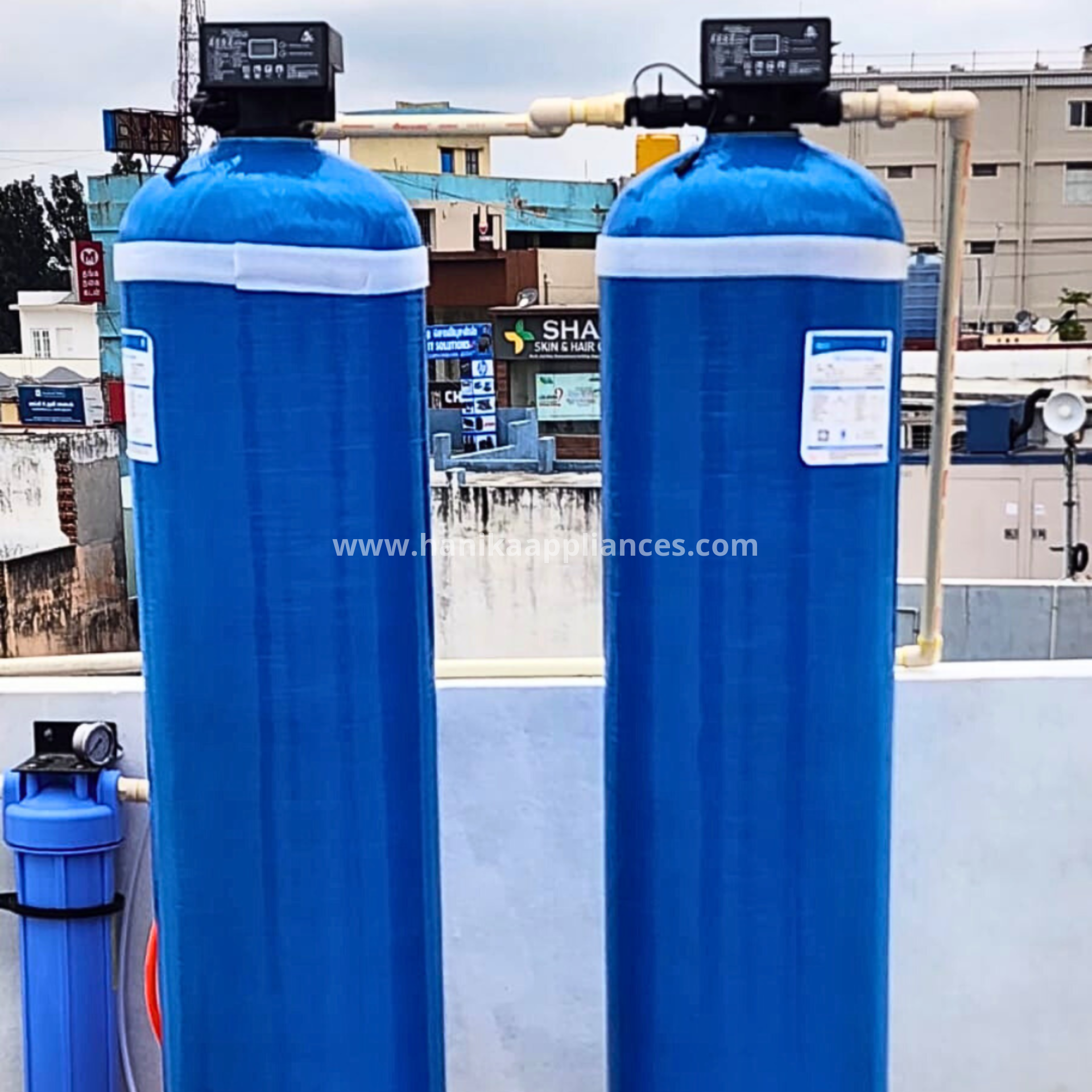

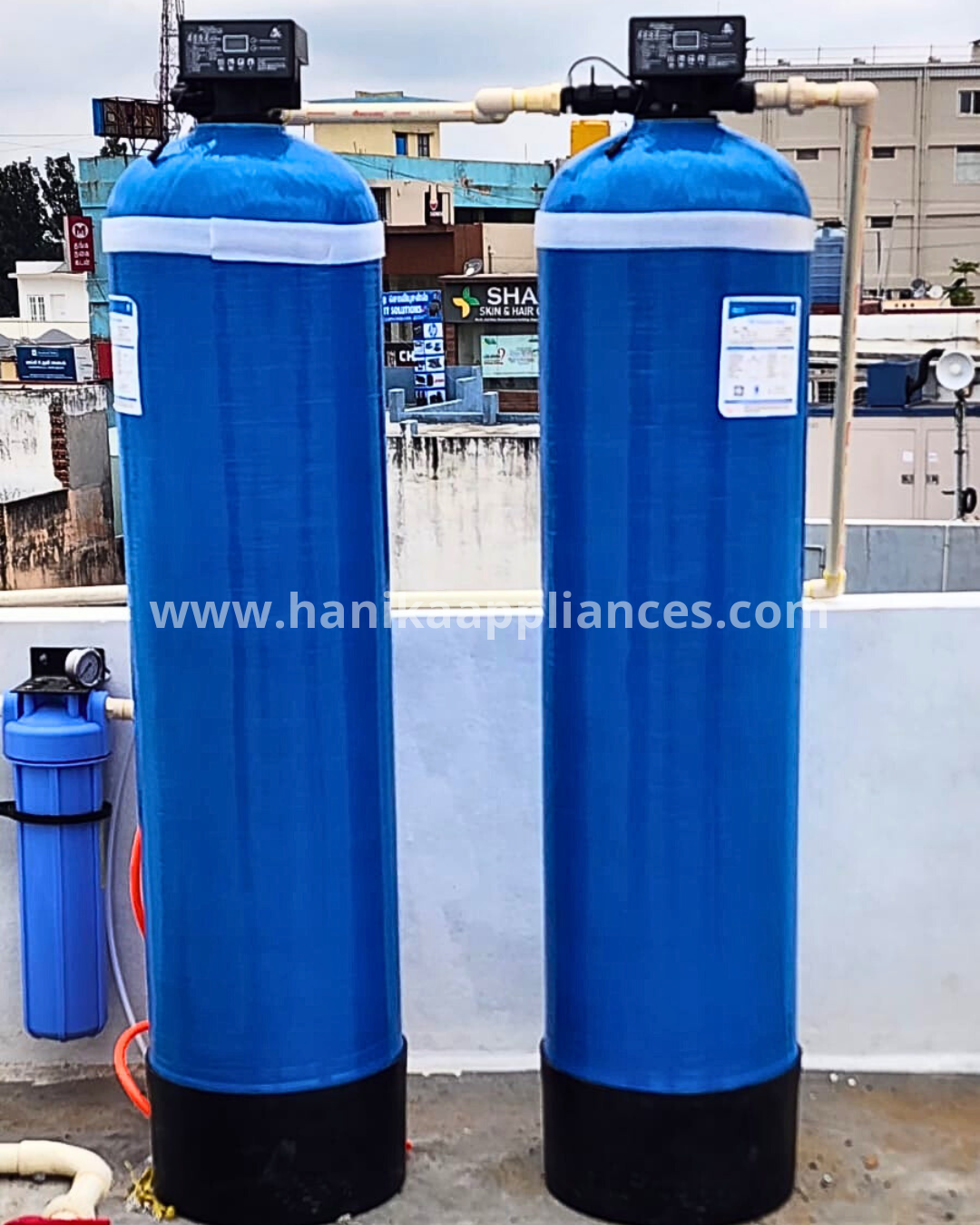

TATA 200LTR Automatic Water Softener with Sand Filter – 1665
(Fully Automatic – Domestic System)

Product Overview:

The TATA 200LTR Automatic Water Softener with Sand Filter – 1665 is a complete domestic water treatment solution designed to remove sand, silt, suspended particles, and hardness-causing minerals such as calcium and magnesium.
This fully automatic system combines a high-efficiency sand filter with ion exchange resin technology, ensuring clean, soft, and scale-free water for the entire household. The automatic multi-port valve and salt regeneration system provide continuous performance with minimal maintenance.

Technical Specifications

General Features:

• Brand: TATA

• Model: 1665

• System Type: Water Softener with Sand Filter

• Technology: Sand Filtration + Ion Exchange Resin

• Control System: Fully Automatic Multi-Port Valve

• Regeneration Process: Automatic Salt Regeneration

• Tank Material: FRP / HDPE (Corrosion Resistant)

Filtration & Softening Details:

• Sand Filter Media: Quartz Sand & Gravel

• Function: Removes sand, silt, dust & suspended impurities

• Resin Type: High-Quality Cation Exchange Resin

• Hardness Removal Efficiency: 95% – 99%

Performance Details:

• Soft Water Capacity: 200 LPH (Liters Per Hour)

• Flow Rate: 200 – 800 LPH

• Operating Pressure: 1.5 – 4.5 kg/cm²

• Working Temperature: 5°C – 50°C

• Water Source: Borewell / Municipal Water

Control & Automation:

• Valve Type: Automatic Multi-Port Valve (MPV)

• Regeneration Mode: Time-Based / Volume-Based (Programmable)

• Backwash & Rinse: Fully Automatic Cleaning Cycle

• Operation: Zero Manual Intervention

Tank & Accessories:

• Main Tank Size: 1665 FRP Vessel

• Salt Storage Tank: 100L Capacity Salt Drum

• Salt Consumption per Regeneration: Approx. 6 – 10 kg

• Inlet / Outlet Connection: 1 inch BSP Threaded

• Drain Connection: ¾ inch BSP

Key Benefits:

✔ Removes hardness, sand & suspended particles
✔ Prevents scaling in pipelines & bathroom fittings
✔ Extends life of geysers & washing machines
✔ Improves soap & detergent efficiency
✔ Fully automatic system – easy to use
✔ Durable FRP tank with long service life
✔ Low maintenance & water-efficient

Applications:

✅ Independent Houses & Villas
✅ Apartments (Individual Flats)
✅ Domestic Borewell Water Treatment
✅ Kitchens, Bathrooms & Utility Areas

Installation & Maintenance:

• Installation Type: Floor Standing

• Installation Support: Professional Installation Available

• Maintenance: Only periodic salt refilling required

• Warranty: 1 Year (Extendable with AMC)

Why Choose TATA 200LTR Automatic Water Softener with Sand Filter – 1665?

⭐ Dual filtration & softening in one system
⭐ Fully automatic & programmable control
⭐ Ideal for domestic water usage
⭐ Heavy-duty FRP construction
⭐ Trusted TATA quality & reliability
