MANUAL WATER SOFTENER - 1665

200LTR TATA MANUAL WATER SOFTENER (1665) – DOMESTIC SYSTEM

Product Overview

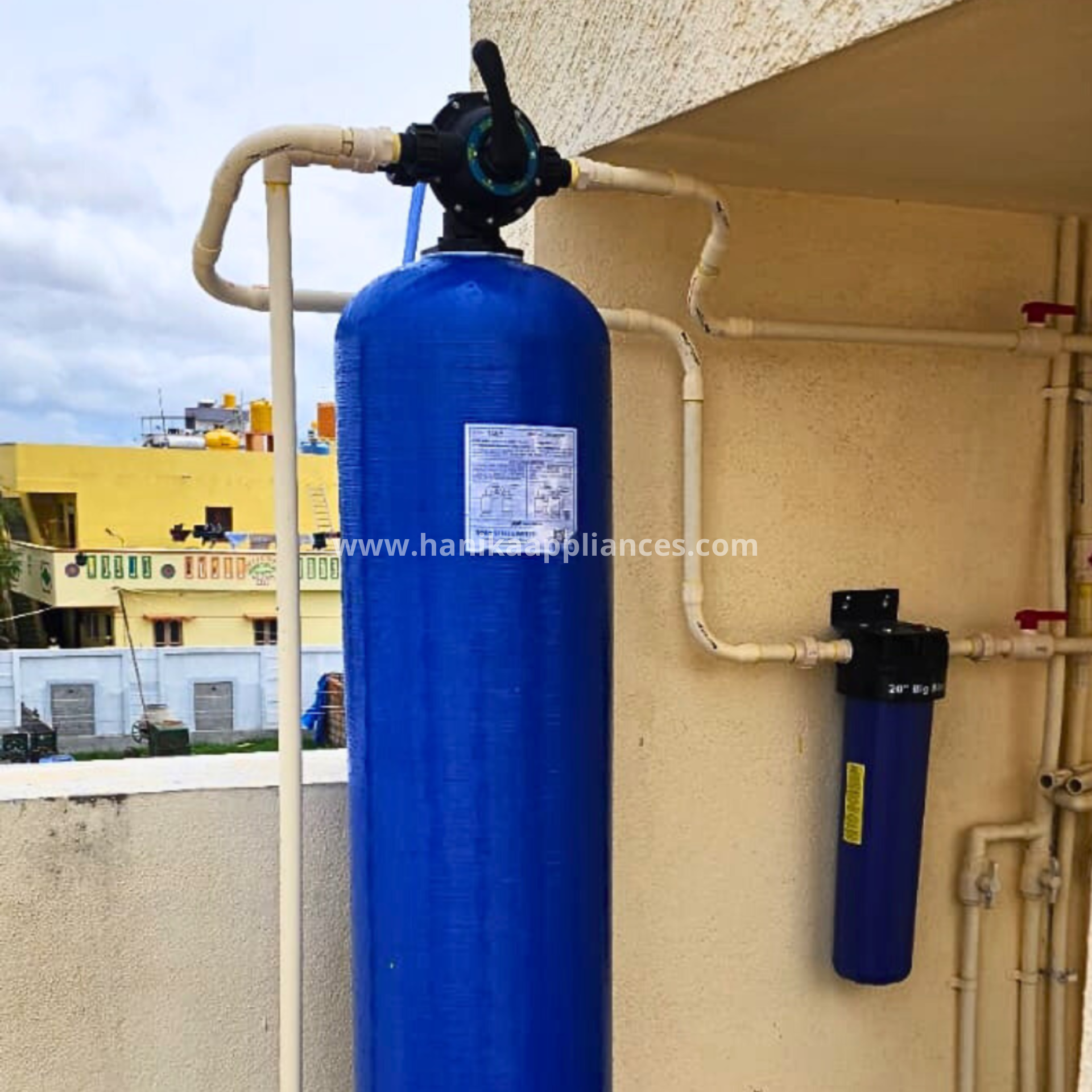

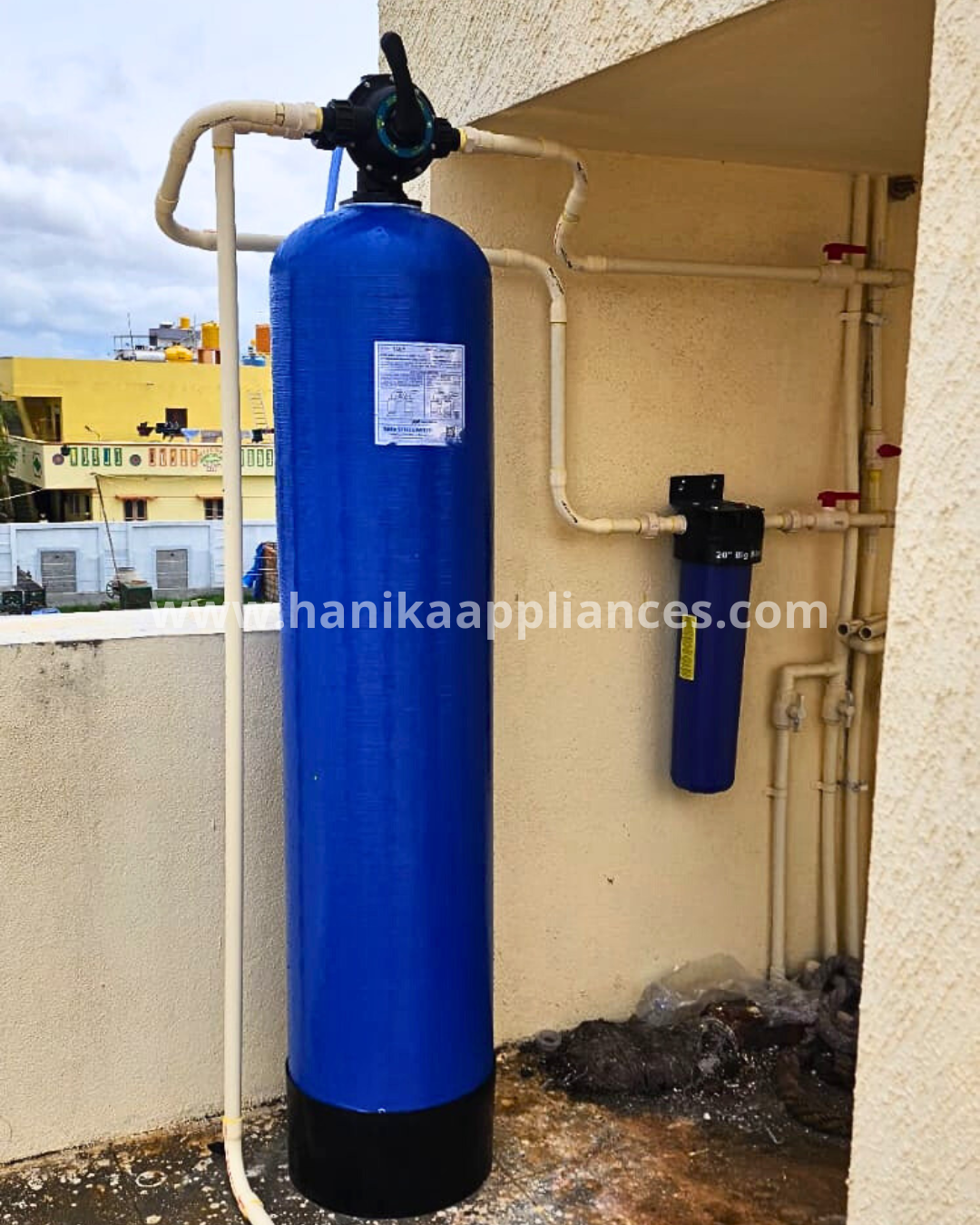

The 200LTR TATA Manual Water Softener (1665) is a reliable and cost-effective domestic water treatment system designed to remove sand, silt, suspended impurities, and hardness-causing minerals such as calcium and magnesium.
This system combines sand filtration and ion exchange resin technology with a manual multi-port valve, making it ideal for households looking for efficient performance, simple operation, and low maintenance.

Technical Specifications

General Features:

• Brand: TATA

• Model: 1665

• System Type: Manual Water Softener with Sand Filter

• Technology: Sand Filtration + Ion Exchange Resin

• Control System: Manual Multi-Port Valve

• Regeneration Process: Manual Salt Regeneration

• Tank Material: FRP / HDPE (Corrosion Resistant)

Filtration & Softening Details:

• Sand Filter Media: Quartz Sand & Gravel

• Function: Removes sand, silt, dust & suspended impurities

• Resin Type: High-Quality Cation Exchange Resin

• Hardness Removal Efficiency: 95% – 99%

Performance Details:

• Soft Water Capacity: 200 LPH (Liters Per Hour)

• Flow Rate: 200 – 800 LPH

• Operating Pressure: 1.5 – 4.5 kg/cm²

• Working Temperature: 5°C – 50°C

• Water Source: Borewell / Municipal Water

Control & Operation:

• Valve Type: Manual Multi-Port Valve (MPV)

• Regeneration Mode: Manual (User Initiated)

• Backwash & Rinse: Manual Operation

• Operation: Simple & User-Controlled

Tank & Accessories:

• Main Tank Size: 1665 FRP Vessel

• Salt Storage Tank: 100L Capacity Salt Drum

• Salt Consumption per Regeneration: Approx. 6 – 10 kg

• Inlet / Outlet Connection: 1 inch BSP Threaded

• Drain Connection: ¾ inch BSP

Key Benefits:

✔ Removes hardness, sand & suspended particles
✔ Prevents scale formation in pipelines & appliances
✔ Protects geysers, washing machines & bathroom fittings
✔ Improves soap & detergent efficiency
✔ Economical & easy to operate
✔ Durable FRP tank with long service life
✔ Low maintenance domestic solution

Applications:

✅ Independent Houses & Villas
✅ Apartments (Individual Flats)
✅ Domestic Borewell Water Treatment
✅ Kitchens, Bathrooms & Utility Areas

Installation & Maintenance:

• Installation Type: Floor Standing

• Installation Support: Professional Installation Available

• Maintenance: Manual regeneration & periodic salt refilling

• Warranty: 1 Year (Extendable with AMC)

Why Choose 200LTR TATA Manual Water Softener (1665)?

⭐ Cost-effective alternative to automatic systems
⭐ Simple manual operation & control
⭐ Dual filtration + softening in one unit
⭐ Designed for domestic water usage
⭐ Trusted TATA quality & reliability
